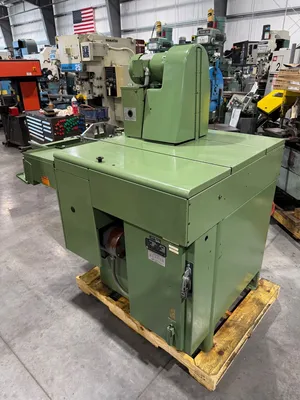

SUNNEN # MBC-1803 Hone Honing Machine with Auto Cycle, Stroking #7447
| Mandrel Dia. (min) | 0.06" | 1.524 mm |
| Mandrel Dia. (max) | 6.5" | 165.1 mm |
| Stroke (min) | 16" | 406.4 mm |
| Horz/Vert | Horz | Horz |
SUNNEN # MBC-1803 Hone Honing Machine with Auto Cycle, Stroking #7447
Reference # 7447
Model # MBC-1803-J
Serial # 1L1-90830
Internal work diameter range with automatic sizing- 1/8" to 2"
Internal work diameter range with power stroke- .060" to 3-3/4"
Internal work diameter range, manual stroke- .060” to 6.5”
Length range:
Open bores can be automatically size up to- 10”
Open or blind holes can be power stroked or manually stroked up to - 16”
(8) Stroking rates- 80 – 310 S.P.M.
(12) Spindle speeds- 20 – 2,500 R.P.M.
Power stroking attachment
Manual or automatic cycle modes of operation with automatic sizing and machine shut-off
Self contained coolant system
1/2 H.P coolant pump motor
1/2 H.P. 3/60/230-460 volt power stroking motor
1 H.P. 3/60/230-460 volt spindle drive motor and electrical controls
Machine is currently wired 208 volt
Machine weight- 1200 Lbs.
Machine dimensions- 50” x 60” x 65” H
Machine location- F.O.B. Sarasota, Florida
