SERIAL ...................... 1185/3539
MODEL ....................... GHO-0437
CAPACITY MILD STEEL ......... .156" (9 GA)
LENGTH OF BLADES ............ 145"
POWERED BACK GAUGE .......... 36"
BACK GUAGE READOUT .......... YES
DEPTH OF GAP ................ 13"
STROKE PER MINUTE ........... 11 @ FULL STROKE
BLADE CLEARANCE ADJUSTMENT .. MANUAL
BLADE CLEARANCE READOUT ..... DIAL INDICATOR
CLADE RAKE ANGLE ............ ADJUSTABLE
NUMBER OF HOLD DOWNS ........ 11
LENGTH OF SQUARING ARM ...... 12' (144")
LENGTH OF FRONT SUPPORTS .... 2 @ 60"
PASSLINE HEIGHT ............. 33"

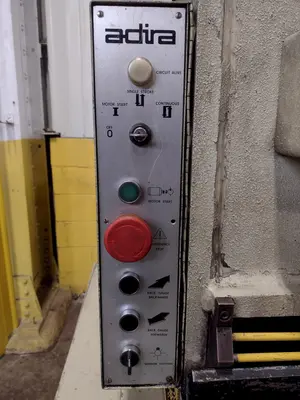

OPERATING MODES ............. SINGLE OR CONTINUOUS
ELECTRIC FOOT PEDAL TRIP .... YES
E-STOP BUTTON ............... YES
BACKGUAGE MOTOR ............. 1 HP
MAIN HYDRALIC MOTOR ......... 10 HP
Specifications
