S
ERIAL ........... 322-23
MODEL ............ 322
DIES ............. 2
TUBE OD .......... 1/4 TO 2-1/2"
FORMING STROKE ... 6"
FORMING FORCE .... 9.5 TON @ 1800 PSI
CLAMP STROKE ..... 1-7/8"
CLAMP FORCE ...... 12.5 TON
PRODUCTION RATE .. 780 PARTS PER HOUR
WORK HEIGHT ...... 39"

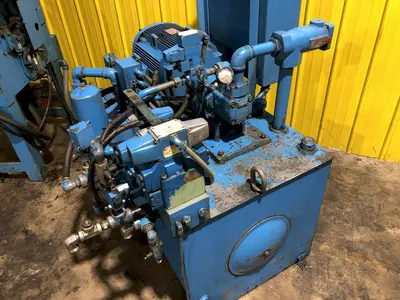

HYDRAULIC MOTOR .. 25 HP
Specifications
