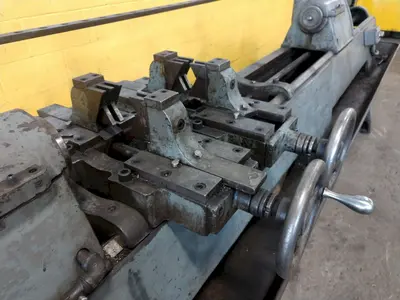

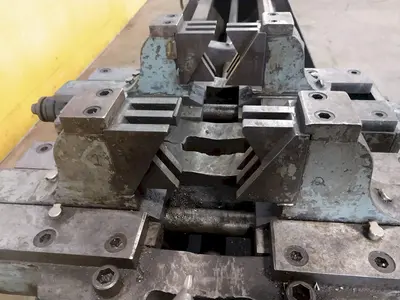

Sundstrand Drilling & Centering Machine
Sundstrand Drilling & Centering Machine
Model: 56
Model: 56

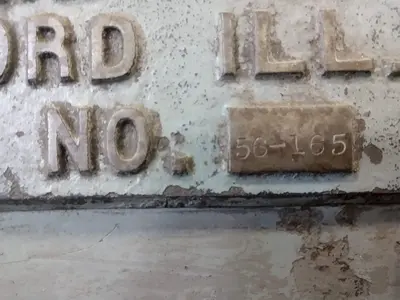

Serial Number: 56-165
Serial Number: 56-165
Specifications:
Specifications:
Max Shaft Dia.: 6”
Max Shaft Dia.: 6”
Min. Shaft Dia.: ½”
Min. Shaft Dia.: ½”
Max. Shaft Length: 72”
Max. Shaft Length: 72”
RPM Ranges: 1000, 1200,1500 or 1800
RPM Ranges: 1000, 1200,1500 or 1800
Capacity:
Capacity:
2) 1” Drills Simultaneously in Mild Steel
2) 1” Drills Simultaneously in Mild Steel
Simultaneously Hand Feed: 1.75”
Simultaneously Hand Feed: 1.75”
Simultaneously Power Feed: 3.5”
Simultaneously Power Feed: 3.5”
Taper In Spindle Nose: No. 3 Morse Taper
Taper In Spindle Nose: No. 3 Morse Taper
Dia. Of Spindle Quill: 4”
Dia. Of Spindle Quill: 4”
Width of Bed: 11”
Width of Bed: 11”
Top of Bed Ways to Spindle Center: 6”
Top of Bed Ways to Spindle Center: 6”
Motor: 3 HP, 3 Phase
Motor: 3 HP, 3 Phase
Machine Dims: 134”Lx4’Wx4’H
Machine Dims: 134”Lx4’Wx4’H
Weight: 2500 Pounds
Weight: 2500 Pounds
