SERIAL ..... 0414EF115C105
MODEL ...... EF-AC/115-U
Single Tube End Chamfering with OD 115mm Capacity
The SOCO EF chamfering machine, EF-AC/115-U series extends up to OD115mm in capacity. These semi-automatic machine models offer different functions such as specific clamps for each tube size or universal clamping jaws for various tube sizes ( EF-AC/115-U Type ). The process is suitable for single tube end chamfering and available for solid bars.
Capable of chamfering inside and outside diameter of tubes
Capable of working with 4-1/2" OD x 0.177" WT pipe and 2-1/8" OD solid stock

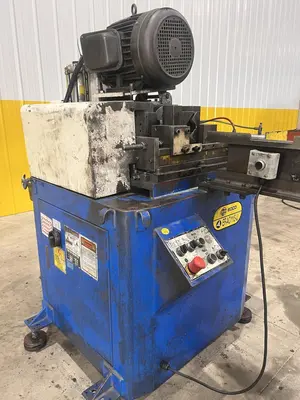

4-1/2" SOCO EF-AC/115 Soco semi-automatic single tube end chamfering machine
Specifications: Capable of chamfering inside and outside diameter of tubes Capable of working with 4-1/2" OD x 0.177" WT pipe and 2-1/8" OD solid stock

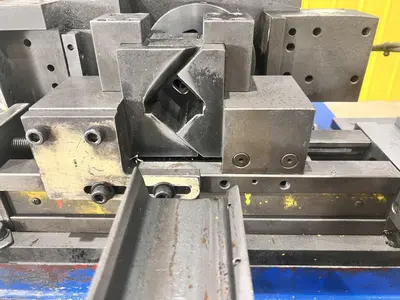

Pneumatic vise
Machine mounted operator controls
Features:
- Single tube end chamfering machine
- Clean tube surface preparation before welding
- Precise Angular Chamfers for Fittings and Assembly
- Inside + Outside (I/O) Chamfering + Facing
- Radius (Round) Chamfering
- Centering and Outside Chamfer for Solid Bars
BrandSOCO
TypeTube End Forming Machinery
Stock No.21043
