| Swing | 25.6" | 650.24 mm |
| Machining Length | 30.1" | 764.54 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 17.7" | 449.58 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Doosan-Fanuc i Series CNC Control) | CNC (Doosan-Fanuc i Series CNC Control) |
| Dimensions | 119.5″ x 70.3″ x 67.5″ High | 119.5″ x 70.3″ x 67.5″ High |
| Weight | 7055 lbs Approx. | 7055 lbs Approx. |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:

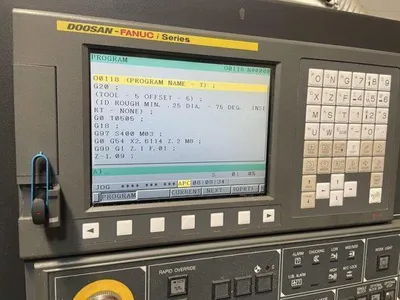

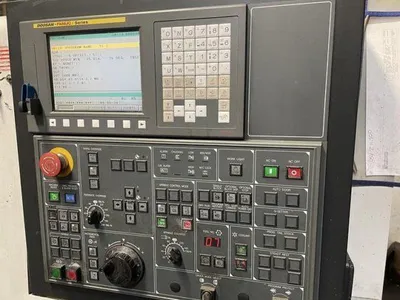

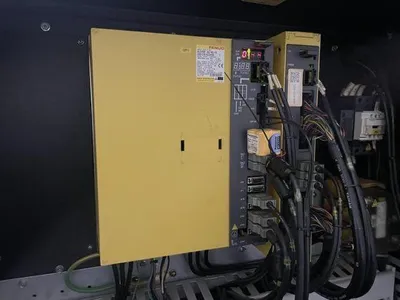

Doosan-Fanuc i Series CNC Control

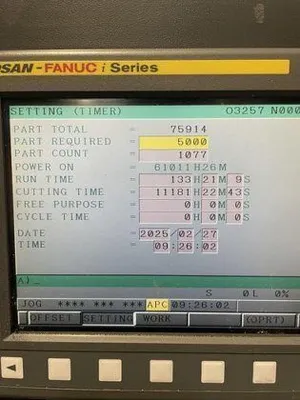

11,181 Hours Cutting Time
3.4″ Bore, Long Bed Lathe
10″ 3-Jaw Hydraulic Chuck
12 Station Turret
USB Drive
PCMCIA Card Slot
Coolant System
Capacity:
Max Turning Diameter : 17.7″
Max Swing Over Bed : 25.6″
Max Swing Over Saddle : 18.1″
Max Turning Length: 30.1″
Max Bar Capacity : 3.0″
Travels:
X Axis Travel : 10.0″
Z1 Axis Travel : 31.1″
Rapid Traverse X Axis: 944 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.4″
Spindle Speed: 3500 RPM
Spindle Motor: 20 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
OD Tool Size: 1.0″
Boring Bar Size: 1.6″
Tailstock:
Tailstock Body Travel: 30.5″
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.1″
Tailstock Quill Travel: 4.7″
General:
Power Source: AC 200-220v / 3-Phase / 50/60 Hz
Power Requirement: 23.68 kva
Machine Dimensions: 119.5″ x 70.3″ x 67.5″ High
Machine Weight: 7,055 lbs Approx.
Programmable Hydraulic Tailstock
Tool Presetter

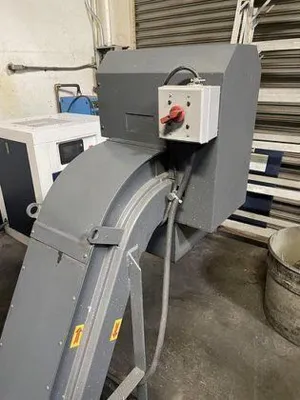

Chip Conveyor
Foot Switches
