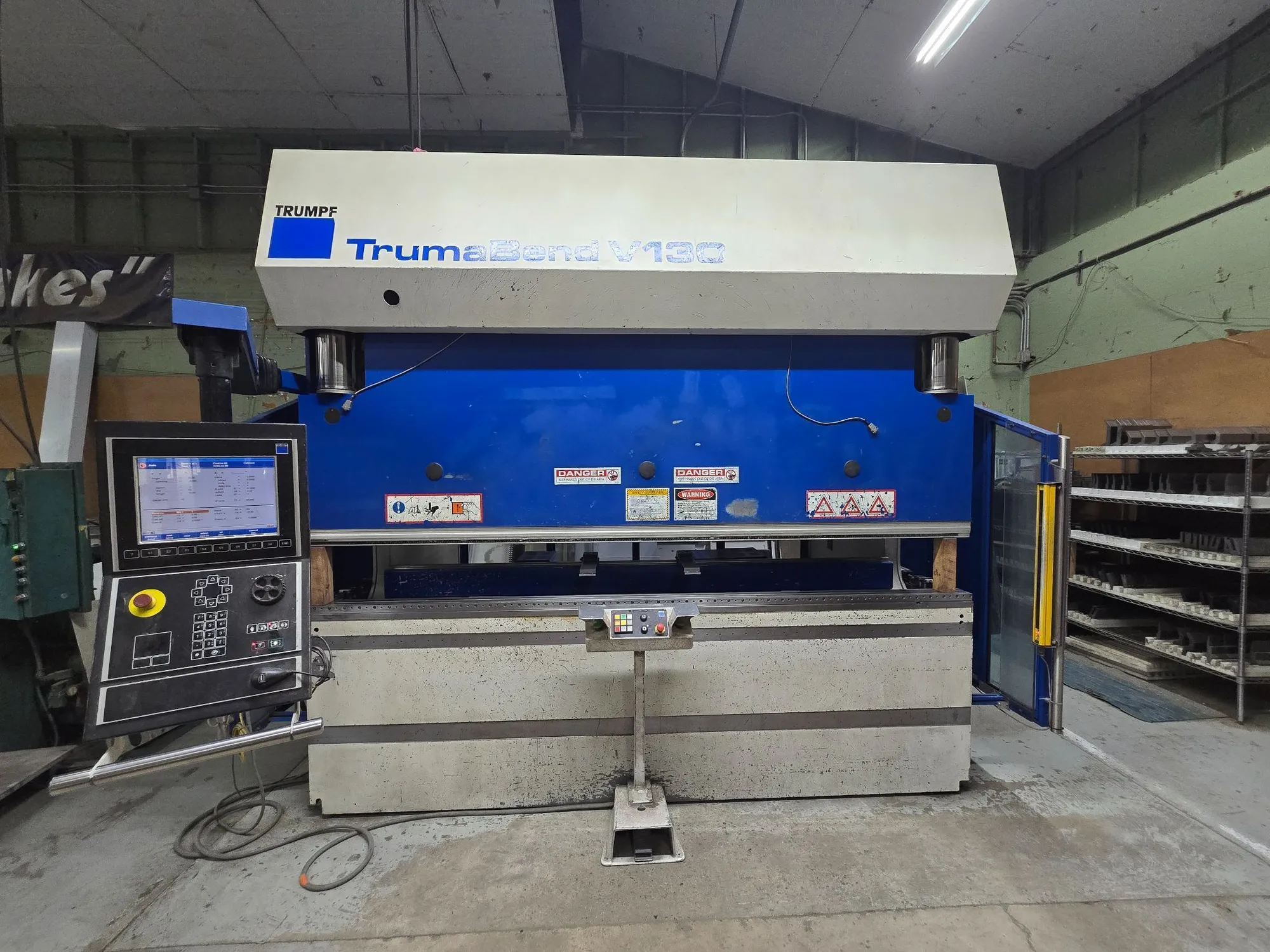

2005 Trumpf V130, 10' x 143 Ton, CNC Hydraulic Press Brake
| Tonnage | 144 T | 130.635 t |
| Type | HYD | HYD |
| Overall Length | 121" | 3.1 m |
| Between Housings | 106" | 2.7 m |
| Stroke | 8.5" | 215.9 mm |
| # Axis | 4 | 4 |
| Control | CNC | CNC |
Overall Bed Length: 121: inches
Press Capacity: 144 Ton
Type of Press Force: Hydraulic
Distance Between Housings: 106: inches
Number of CNC Controlled Axis: 8
Stroke Length: 8.5: inches
Open Height: 15: inches
Throat Depth: 16.5: inches
Trumpf Delem CNC Controls, 4 Axis CNC Back Gauges, Y1, Y2 CNC Ram Control, Wila Hydraulic Upper & Lower Clamping, CNC Bed Crowning, Die Shift, Electric Foot Switch Control. Machine does not include tooling.
