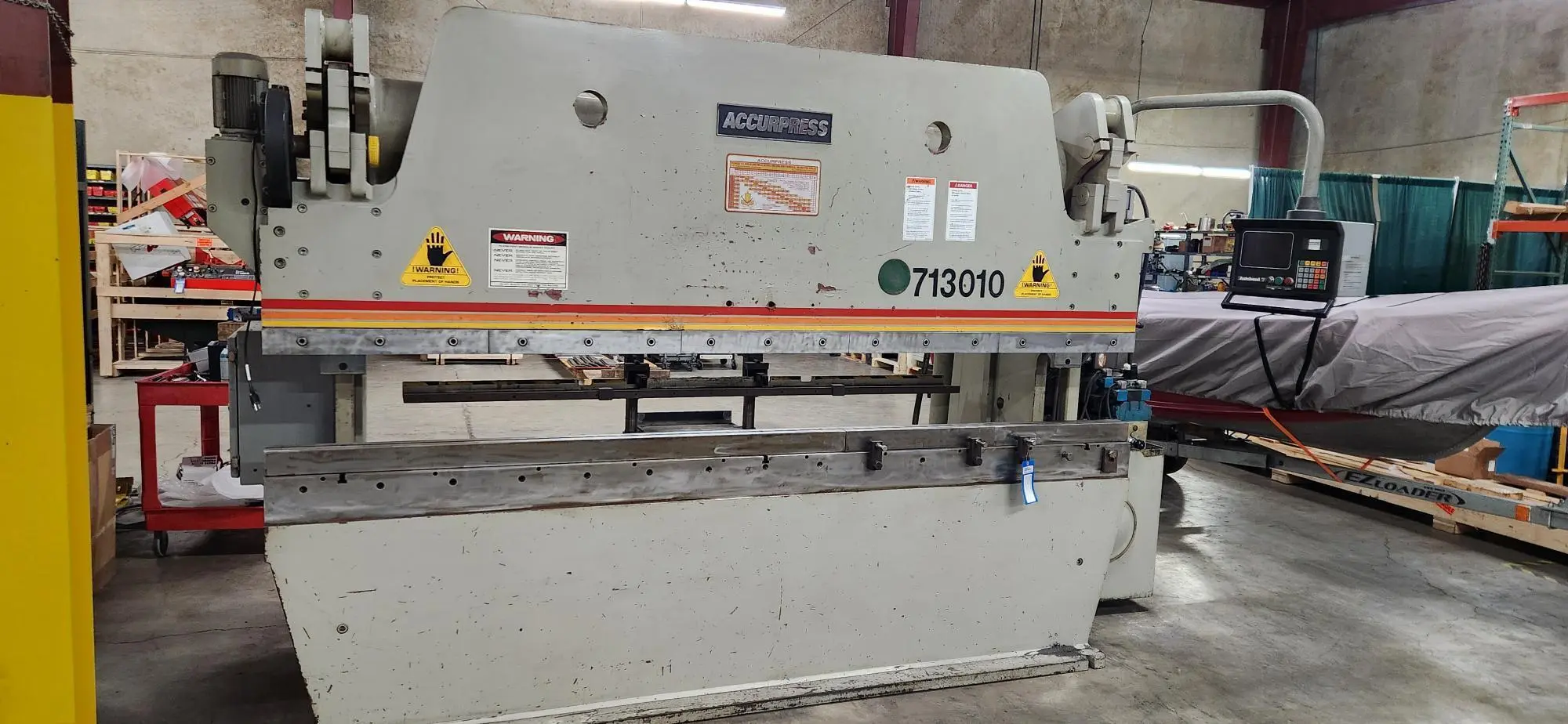

Equipped with: HURCO AB7 Single Axis Backgauge w/ Ram Control, 3 x 3 x 10’ Die Holder with Tang, and User Manual
| Tonnage | 130 T | 117.934 t |
| Type | HYD | HYD |
| Overall Length | 10' | 3 m |
| Between Housings | 8.33' | 2.5 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 2 | 2 |
| Control | CNC (HURCO AB7/S7) | CNC (HURCO AB7/S7) |
| Dimensions | 145” x 53” x 91” | 145” x 53” x 91” |
| Weight | 17000 | 17000 |
Tonnage: 130; Length of Bed: 120”; Distance between Housings: 100”; Bed Height: 34”; Top Bed Width: 4.5”; Ram Open Height: 14”; Ram Closed Height: 6”; Ram Stroke Length: 8”; Throat Depth: 10”; Backgauge Travel: 27”; Ram Speeds: Fast Approach - 85 IPM, Slow Bend - 15 IPM, Fast Return - 200 IPM; Main Motor: 20 HP; Wired: 440/60/3; Year: 1996; Estimated Dimensions: 145” x 53” x 91”; Estimated Weight: 17,000 Lbs.;
