| X Axis | 64.96" | 1,650 mm |
| Y Axis | 29.92" | 759.97 mm |
| Z Axis | 27.56" | 700.02 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 32 | 32 |
| Taper | 50 | 50 |
| Table-W | 66.93" | 1,700 mm |
| Table-L | 29.92" | 759.97 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 185″ x 128″ x 122″ High | 185″ x 128″ x 122″ High |
| Weight | 34171 lbs. Approx. | 34171 lbs. Approx. |

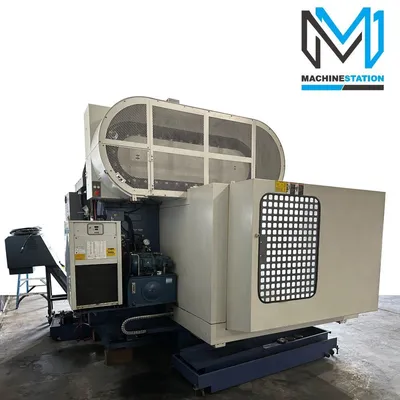

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:
Fanuc MXP-200i series CNC Control
Box Way construction
32 Automatic tool changer
50 Taper Spindle
6,000 RPM High Torque Spindle
PCMCIA Card Slot
MPG Control
Rigid Tapping
Telescopic Way Covers
Coolant System
Travels:
X-Axis: 64.96″
Y-Axis: 29.92″
Z-Axis: 27.56″
X, Y Axis Rapid Traverse rates: 591IPM
Z Axis Rapid Traverse rates: 472 IPM
Cutting Feedrate: 197 IPM
Spindle Nose to Table (Min.- Max.): 7.87″ – 35.43″
Table:
Length: 66.93″
Width: 29.92″
T-Slot no. & Width: 7 X 0.71″
Max Weight on Table: 4409 lbs
Spindle:
Taper Size: 50
Speed Range: 6,000 RPM
Spindle Power: 20 HP
Automatic Tool Changer:
Capacity: 32 Station Side Mounted
Max Tool Weight: 33 lbs
Max Tool Length: 11.8″
Max Tool Diameter : 4.72″
General:
Air Required: 90 psi, 4 scfm
Power: 205-220v / 40kva / 3-Phase
Overall Dimensions: 185″ x 128″ x 122″ High
Weight: 34171 lbs
Chip Conveyor
