| size | 165 Ton x 13' | 165 Ton x 13' |
| Tonnage | 165 T | 149.686 t |
| Type | HYD | HYD |
| Overall Length | 13' | 4 m |
| Between Housings | 10.5' | 3.2 m |
| Stroke | 6.3" | 160.02 mm |
| # Axis | 3 | 3 |

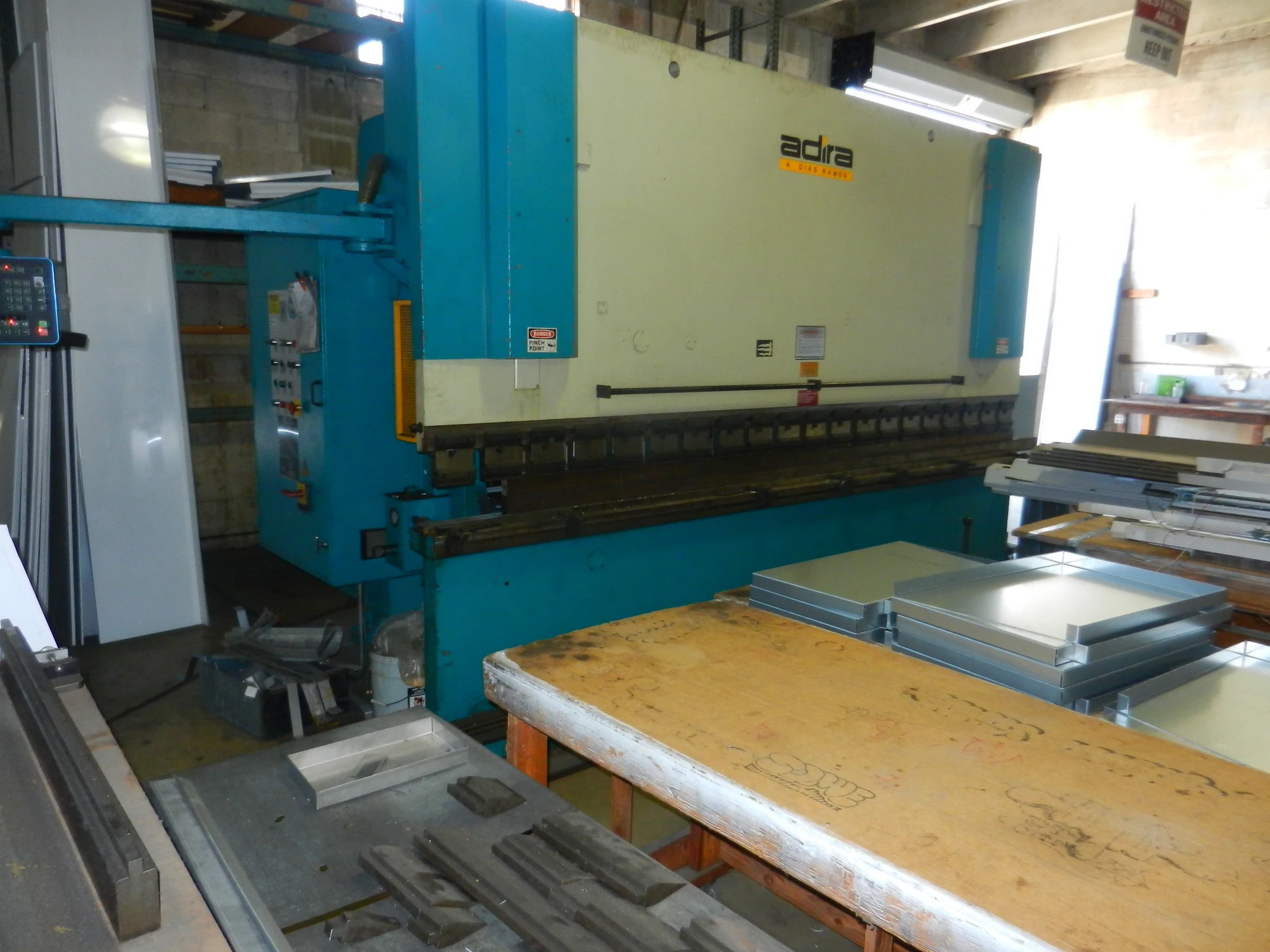

Adira QHD-15040 165 Ton x 13′ CNC Hydraulic Press Brake
Capacity: 165 Tons
Max Bending Length: 13.1′
Tooling Length: 13.3′
Distance Between Housings: 10.7′
Throat Depth: 12.4″
Maximum Stroke Length: 6.3″
Open Height (Without Tooling): 15.7″
Shut Height (Without Tooling): 9.4″
Bed Top Width: 8″
Approach Speed: 3.1 in/sec
Pressing Speed: 0.3 in/sec
Return Speed: 3.1 in/sec
Motor Power: 12.1 HP
Approximate Weight: 21,500 LBS
Dimensions: 11′ x 50″ x 10′
