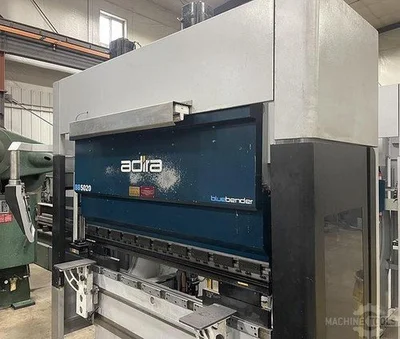

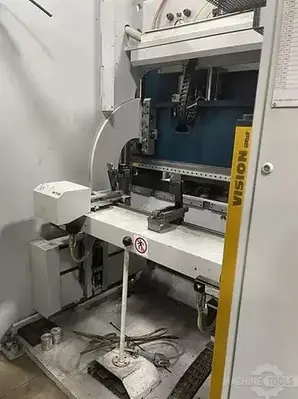

56 Ton x 6.58' Electric Press Brake
Tonnage | 50 T | 45.359 t |
Type | HYD | HYD |
Overall Length | 2,000 mm | 6.56' |
Between Housings | 1,550 mm | 5.09' |
Stroke | 250 mm | 9.8425" |
Make an Offer
Inquire Now Buy Now
Activate Pricing
Capacity: 56 Ton
Overall Length of Bed: 6.58'

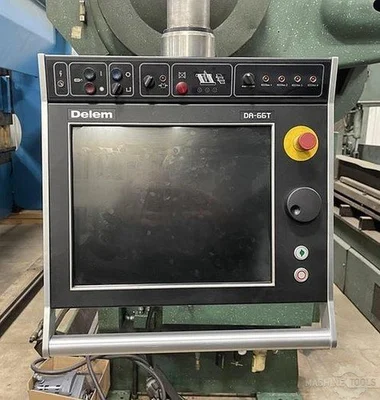

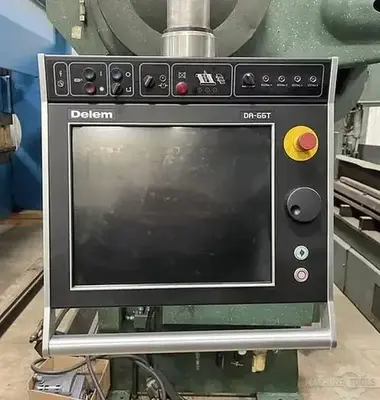

Control: Delem 66T
Distance Between Housings: 61"
Stroke: 9.8"
Throat Depth: 15.7"
Open Height: 19.6"
X-Axis Speed: 945 IPM
X-Axis Stroke: 24.6"
R-Axis Speed: 120 IPM
R-Axis Stroke: 7.8
Z1/Z2-Axis Speed: 1,900 IPM
Z1/Z2-Axis Stroke: 49"
X Prime Axis Speed: 236 IPM
X Prime Axis Stroke: +/- 3.9"
Approach Speed: 330 IPM
Working Speed: 24 IPM
Return Speed: 330 IPM
Motor Power: 2 @ 10 HP
Power Requirement: 480v/3PH
Dimensions: 120" x 75" x 115"

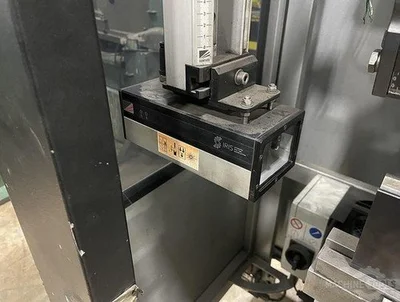

Hydraulic Upper Clamping (American): Laser Safe Iris Black Laser

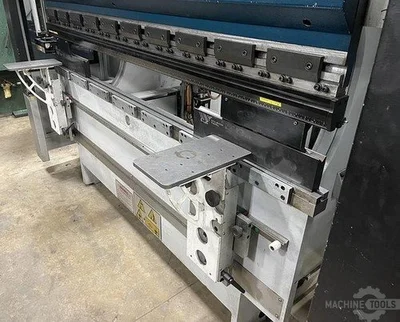

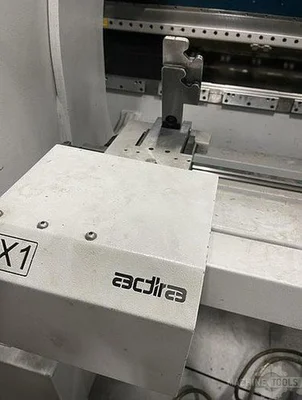

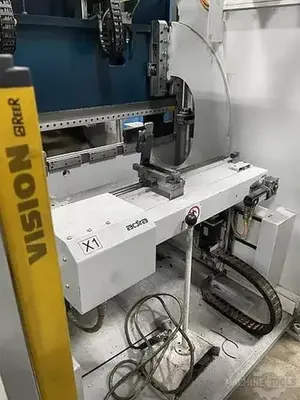

(2) Front Arm Supports: 5-Axis Backgauge
