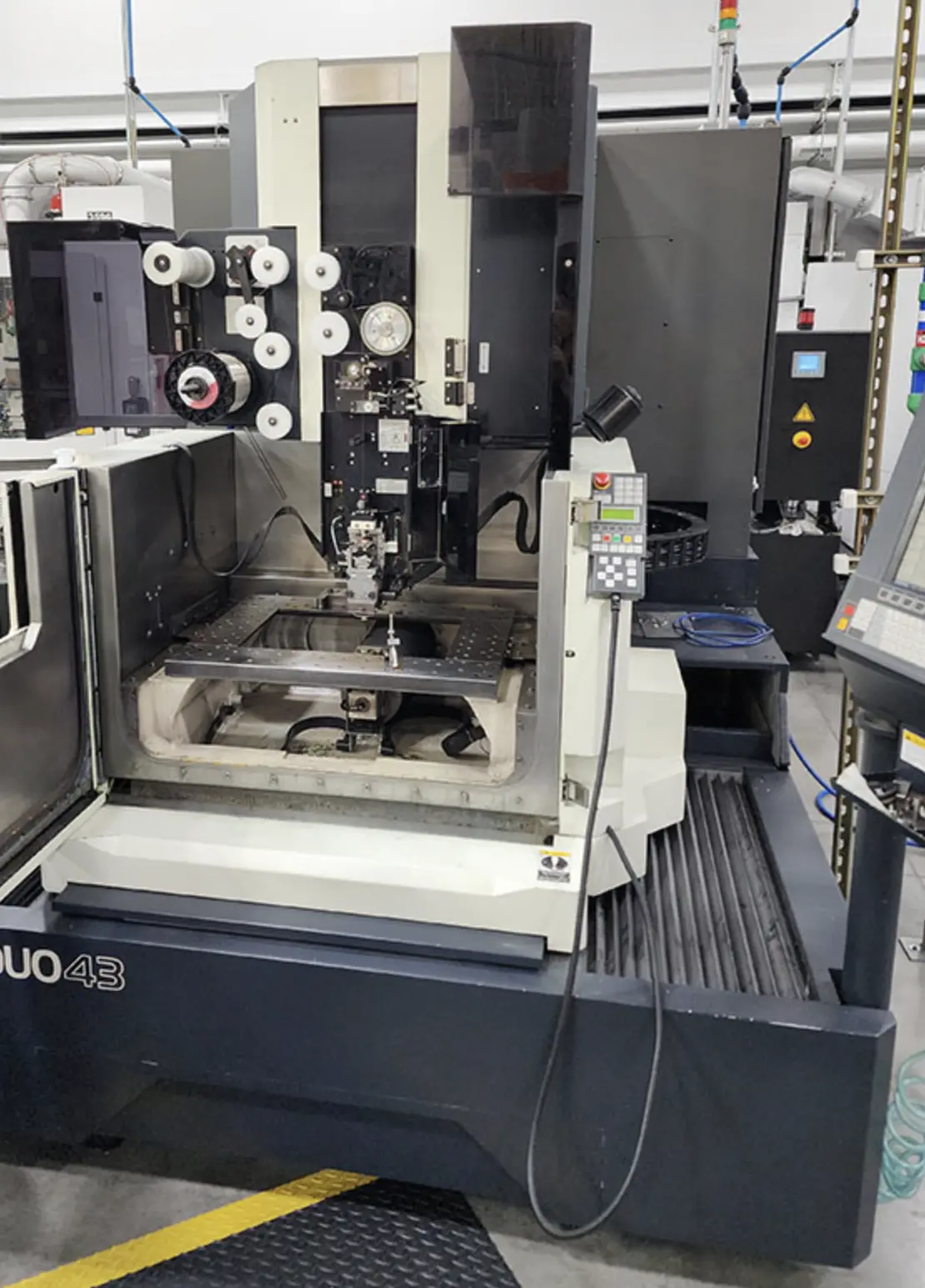

Wire EDM. Used but in good condition. Features 17.7" X travel, 11.8" Y travel, and 12.5" Z travel. Equipped with auto threading and submerged capabilities. CNC Control: MGW-6S.
| X | 17.7" | 449.58 mm |
| Y | 11.8" | 299.72 mm |
| Z | 12.5" | 317.5 mm |
| Auto Threading (Yes/No) | Yes | Yes |
| Submerged (Yes/No) | Yes | Yes |
| Control | CNC | CNC |
| Dimensions | 111" X 75" X 89" | 111" X 75" X 89" |
| Weight | 11,500 LBS | 11,500 LBS |
CNC CONTROL:................... MGW-6S
TYPE OF CNC CONTROL:........... MAKINO
MAX WORKPIECE DIMENSIONS:...... 33.5" x 28.3" x 12.6"
MAX WORKPIECE WEIGHT:.......... 1764 LBS
X-AXIS TRAVEL:................. 17.7"
Y-AXIS TRAVEL:................. 11.8"
Z-AXIS TRAVEL:................. 12.5"
U/V TRAVEL:.................... 3.97"
TAPER HEIGHT:.................. 4"
AUTO THREADING:................ YES
SUBMERGED:..................... YES
