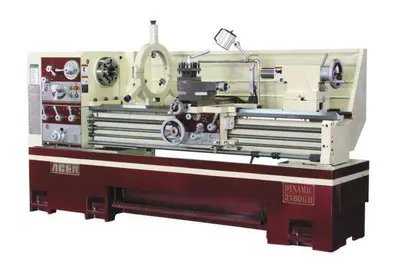

1 - NEW ACER DYNAMIC “21” SERIES HIGH SPEED PRECISION LATHE, MODEL #: 2160GH
Features:
* 10 HP Single Speed Motor for 220V/ 440V 3 Phase 60HZ Wiring
* Hardened and Ground Meehanite Casting Bedway
* Hardened and Ground Gears and Spindle
* 18 Spindle Speeds: (25 ~ 1,540 RPM)
* Quick Change Gear Box w/ Direct Selection for Inch/Metric Thread
* D1-8 Camlock with 3.34” Spindle Bore
* Automatic Longitudinal Multiple Feed Stop
Standard Accessories:
* 12” D1-8 Three Jaw Chuck
* Built-In Coolant System
* 12” D1-8 Four Jaw Chuck
* Full Length Splash Guard
* Bearing Type Steady Rest (3.14” –11.02”)
* Longitudinal Carriage Stop
* 4-Way Tool Post
* 17” Face Plate
* Halogen Work Light
* Tool Box w/ Tools
Optional Accessories:
* 16” 4-Jaw Independent Chuck (D1-8): $1,225.00
* 12” 3-Jaw Independent Chuck (D1-8): $1,325.00
* Follow Rest (1.18” – 6.69”): $475.00
* 20” Face Plate: $700.00
* ‘Aloris’ Tool Post & 4 Holders (#4-BS): $1,325.00
* ‘Aloris’ Tool Post & 6 Holders (#4 Set): $1,700.00
* Tool Post & 4 Holder ‘Dorian’ Quick Changer (SD40CA-TS): $1,325.00
* Four Position Carriage Stop: $400.00
* Micrometer Stop: $300.00
* 5C Collet Closer (Lever-Type): $1,700.00
* 5C Collet Set (1/16” to 1-1/16” x 16ths; 17pcs/set): $650.00
* Installation Fee for Collet Closer: Net $100.00
* Taper Turning Attachment: Net $1,950.00
* Installation Fee for Taper Turning Attachment: Net $300.00
* ‘Newall’ 2-Axis D.R.O. (12” x 40”/60”/80”): $2,925.00/$3,450.00/$4,200.00
* Installation Fee for D.R.O.: Net$400.00
