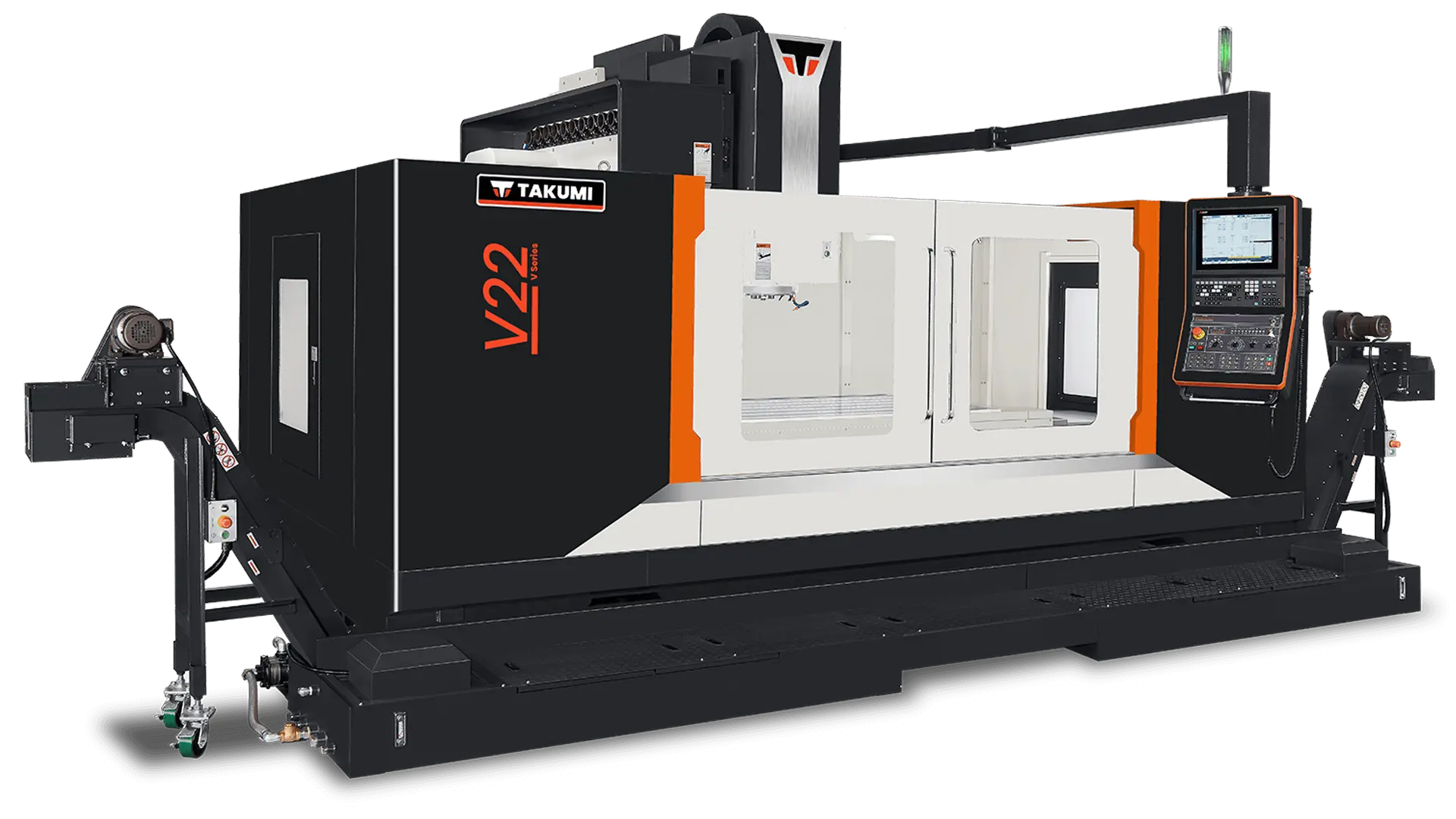

V SERIES BOX-WAY CNC
V Series vertical machining centers are heavy-duty, box-way CNC mills built for tough applications such as roughing cast iron. These 3-axis machines feature belt or geared spindles to provide maximum torque.
High-Rigidity + High-Precision Structure
Perfect combination of heavy cutting and high stability
Designed and built for heavy material removal parts and mold and die industries
Large box ways for rigid and heavy cutting
Pre-tensioned ballscrews minimize thermal growth and improve accuracy
Direct-coupled motors increase accuracy
Swiveling control panel optimizes floor space utilization
Spindle chiller maximizes heat dissipation
Extra wide door openings facilitate loading and unloading
Hand-scraped contact areas
Robust, precision-machined castings
Box-shape bed made of one-piece casting
Integrated washdown and chip management system
Absolute encoders ensure fast startup
FANUC© 0i-MF Plus Series control
Fast, trained, factory service and support
| X | 86.6" | 2,199.6 mm |
| Y | 41.96" | 1,065.8 mm |
| Z | 29.52" | 749.81 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT 50 | CAT 50 |
| Table-W | 40.35" | 1,024.9 mm |
| Table-L | 86.6" | 2,199.6 mm |
| # Axis | 3 | 3 |
| Control | CNC (FANUC 0iMF Plus) | CNC (FANUC 0iMF Plus) |
| Dimensions | 281" L x 225" W x 139" H | 281" L x 225" W x 139" H |
| Weight | 54,013 Lbs. | 54,013 Lbs. |
