NEW MASTEEL MIWH-180

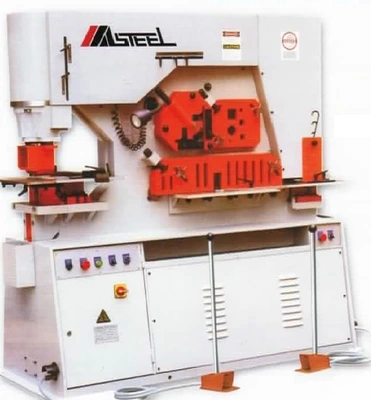

New 180 Ton Masteel Hydraulic Iron Worker Model MIWH 180

Punch Tonnage 180 Ton
Capacities Base On Material Tensile Strength 60,000 PSI
Max Punch Capacity Diameter X Width 1-7/16" X 1-1/4"
Throat Depth 24"
Flat Bar Shearing Thickness X Width 30" X 3/4 Or 16 X 1-18"
Angle Bar Shear 8" X 8" X 3/4" Degrees
Round Bar Shear 2-1/4"
Square Bar Shear 2"X2"
Notching 2-1/4"
Dimension Length & Width 106" X 41"
Machine Height 91"
Machine Weight 11,000 Lbs.
Main Motor 20 Hp.

Punch Station:
Universal die block for punching of large flats,
angle & channel/beam flanges.
Quick change punch holder, ring and adapters.
Swing away punch stripper with view window.
Punch table with scale and two adjustable gauging stops.
Bending attachment with punch and multi-die as
optional equipment.

Shearing Station:
Shearing stations back gauge w/touch & cut feature.
Adjustable hold down for all shearing section stations.
90 ̊ and 45 ̊ angle bar shearing station.
Various size square and round bar shear.
15" square arm with scale for flat bar shearing station.

Notching Station:
Notching table with scale and 3 adjustable gauging stops.
Special design clearance for cutting angle and flat bar.
Electrical locked safety guard.

Includes:
Standard 65 Series Die
Punch 26 Series
Op Die 59 Series
Punch 23 Series

Standard Control Features
North America Made Pump and Motors
North America Built Hydraulics
North America Built Electrics
Double Cylinder Operation
2 Foot Pedals for Punching Side & Shearing Actions
Adjustable Stroke

All electrics warranted by manufacturer. All parts
are FOB Vancouver unless otherwise specified. All
shipments are by ground transport. Fuses, wipers,
and other normal wear items are not covered under
this warranty.

Price and Specifications are subject to change without notice.
