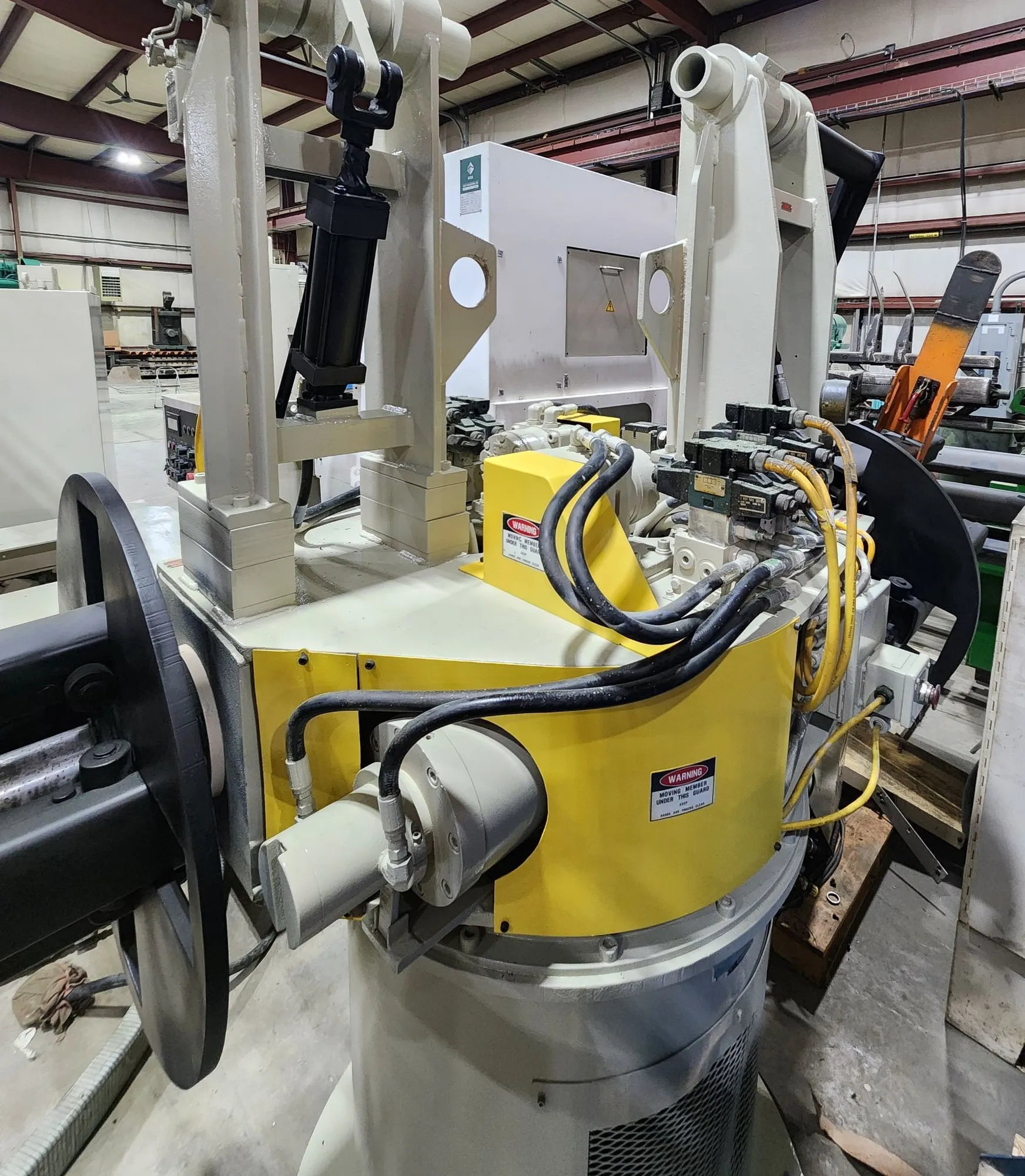

Perfecto 20" Wide Feedline- Feeder: 400-20 E.F. Straightener: 22-20-7 Double End Reel: RD 4-20 B Coil Car/Upender: 6-24 UECC
FOB Hamilton, MI
| Max Weight of Coil | 5,000 lb | 2,268 kg |
| Max Width of Coil | 20" | 508 mm |
| Max Dia. of Coil | 48" | 1,219.2 mm |
FEED SPECIFICATIONS:
MODEL NUMBER: 400-20 E.F.
SERIAL NUMBER: 92055
MAX WIDTH: 20"
STRAIGHTENER SPECIFICATIONS:
MODEL NUMBER: 22-20-7
SERIAL NUMBER: 92057
MAX-MIN STOCK THICKNESS: .065/.015
MAX STOCK WIDTH: 20"
MAX SPEED: 100-400"/MIN
DOUBLE END REEL SPECIFICATIONS:
MODEL NUMBER: RD 4-20 B
SERIAL NUMBER: RB-92058
MAX COIL WEIGHT: 5000 LB
MAX COIL WIDTH: 20"
SPINDLE SPEED: 50 FPM
MAX COIL OD: 48"
COIL ID RANGE: 16" - 20"
COIL CAR/UPENDER SPECIFICATIONS:
MODEL NUMBER: 6-24 UECC
SERIAL NUMBER: 92059
MAX COIL WEIGHT: 6000 LB
MAX COIL WIDTH: 20
MAX LIFT: 15
MAX COIL OD: 48"
Feeder, Straightener, Double Reel
