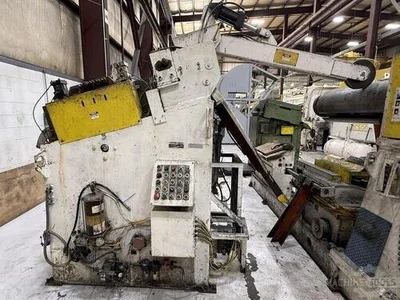

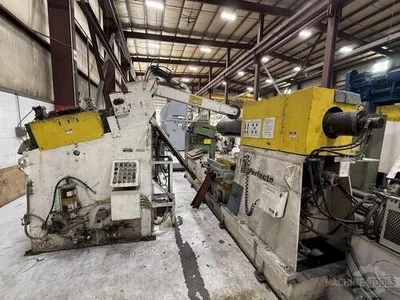

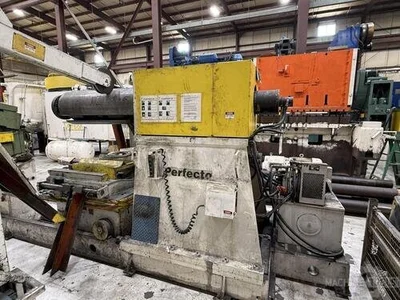

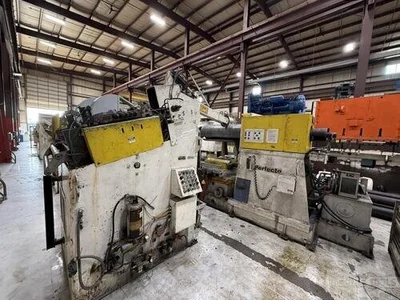

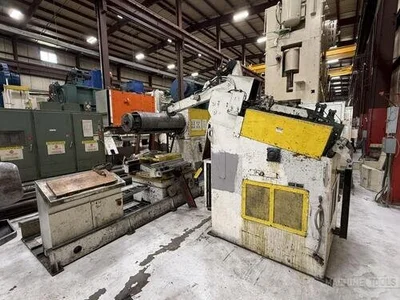

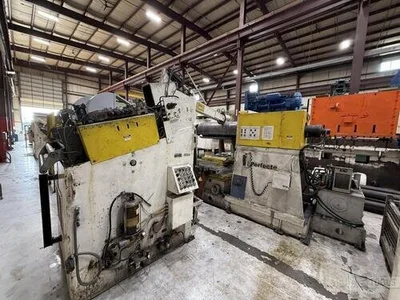

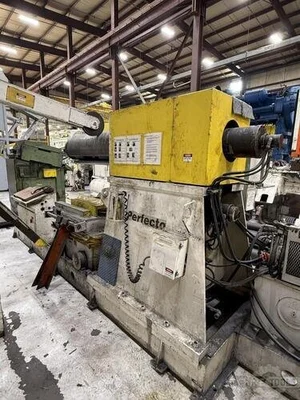

30,000 lbs. x 42" Perfecto Servo - Conventional Coil Feed Line For Metal Stamping
Coil Weight: 30000 ounces
Coil Width: 42 inches
Coil Thickness: .060 inches

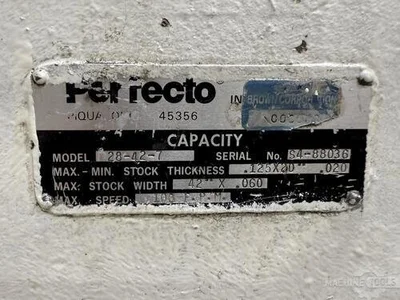

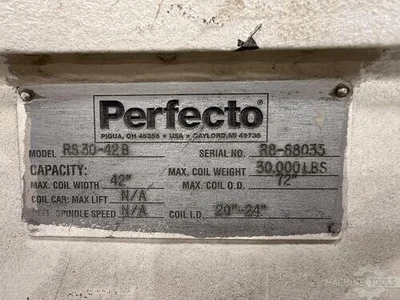

Preliminary SpecificationsCoil Processing for Metal Stamping Feed Line30,000 lbs Coil Capacity42" Max Coil Width.060" @ 42" Max. Thickness and Full Width.125" @ 20" Coil Thickness Capacitysn/ 88035-88039Perfecto Conventional Complete Servo Coil Feed Line Features and Equipment:Perfecto Coil Reel Model: RS30-42B72" Max. Coil O.D.20"-24" I.D. Mandrel Expansion RangeSpindle Shaft Mounted in Permanently Lubricated Tapered Roller BearingsThree Coil Shoes with Wedge Type ExpansionHydraulic Mandrel ExpansionCentral Hydraulic Power SystemAdjustable Air Brake On Spindle ShaftAdjustable Coil Reel Keeper ArmsJog, Forward and ReverseThread DriveTraveling Coil Car with 18" Coil LiftPerfecto Powered Coil Straightener Model# 28-42-77 Straightening Rolls with Ground FinishStraightening Rolls x 2.8" DiameterEntry and Exit Powered Coil Straightener Pinch rolls with Air Operated AdjustmentStock Guides - Heavy Duty - Hand Crank Adjusted Angle Top CabinetManual Individual or Unison Upper Coil Straightening RollsCoil Hold Down Arm with Neoprene End WheelStock Peeler table with ExtensionAutomatic LubricationExit Catenary Support with Rollers Sonic Loop ControlOne Man Operation CapabilityAC Variable Speed Motors and DrivesJog / Forward / ReverseAuto / Run CyclePerfecto Thread Tables Model ETT-42Perfecto Press Mounted Servo Feed Model# FES 400-424" Diameter Upper and Lower Servo Feed RollsAdjustable Stock Width Edge Guides (Hand Crank)Entry Cascade Support RollsCentralized Controls Job Storage Up to 100 PartsAir Operated Upper Servo Feed Roll Lift/PilotRexroth - Indramat DriveAnti-Back Up RollsDual Air Cylinders for Consistent Air PressureCustom Engineered Adapter PlatePilot Pin ModeFree Standing Control ConsoleThis Used Metal Stamping 42" Perfecto Conventional Servo Coil Feed Line Can Be Seen Under Power in the S&G Press Warehouse!
