Wysong 1296 Power Squaring Shear available. Used condition with 12-gauge capacity, 96" blade length, and 24" back gauge. 5 HP motor, operating at 60 SPM. Suitable for precise metal cutting tasks. Ideal for industrial applications.
| Max Gauge | 12 gauge | 12 gauge |
| Length of Blade | 96" | 2,438.4 mm |
| Back Gauge | 24" | 609.6 mm |
| Power | 5 hp | 3.7 kW |
| SPM | 60 strokes/min. | 60 strokes/min. |

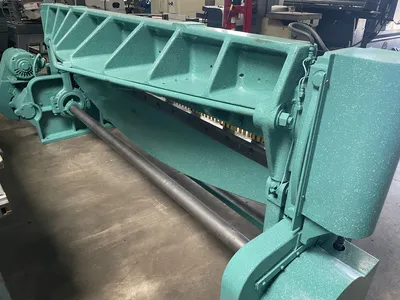

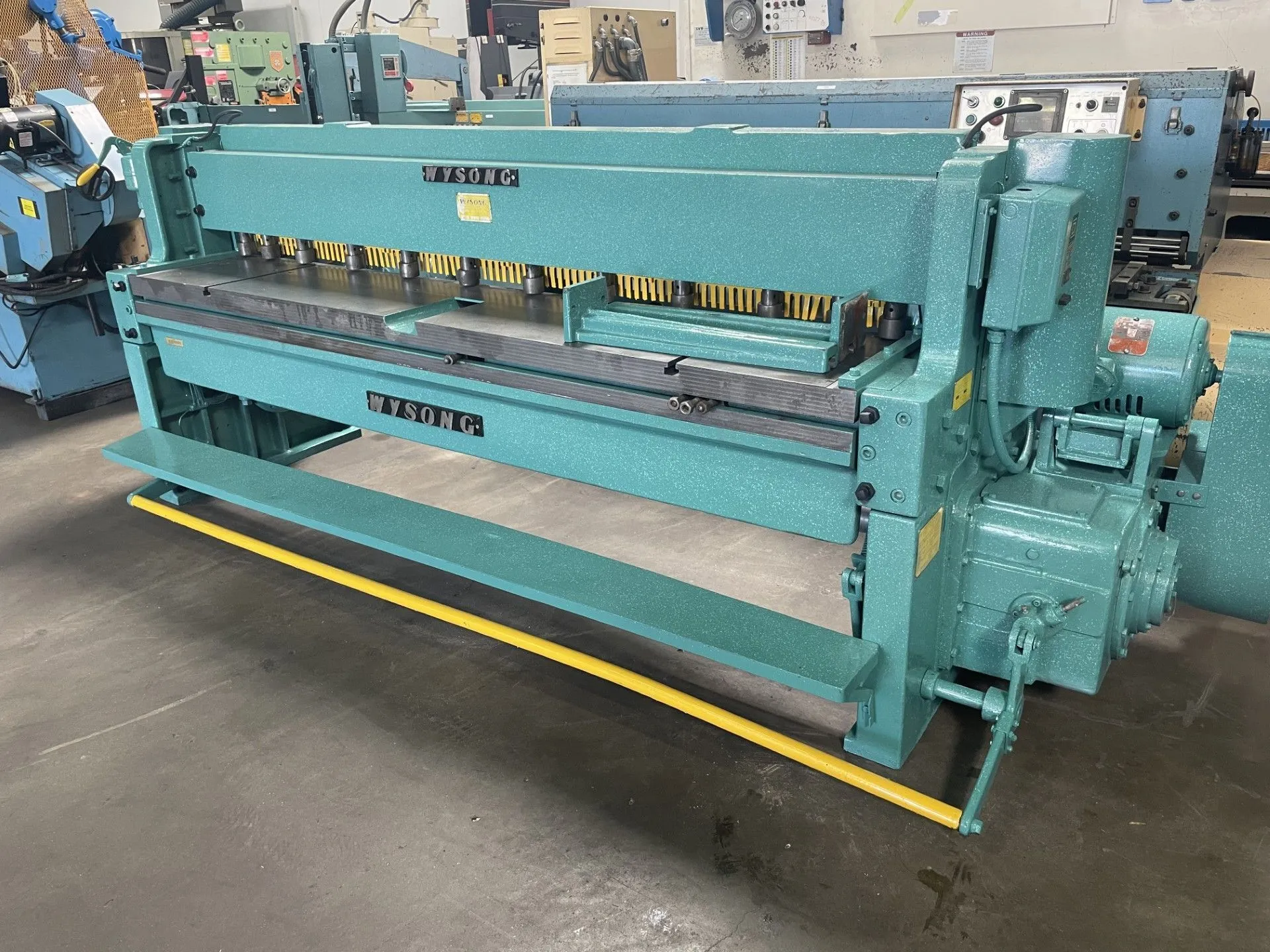

Wysong 1296 Power Squaring Shear 96" x 12 Ga. #7452 #1
SPECIFICATIONS:
MAXIMUM CUTTING WIDTH: 96" (8')
MAXIMUM THICKNESS CAPACITY: 12 Ga. Mild Steel

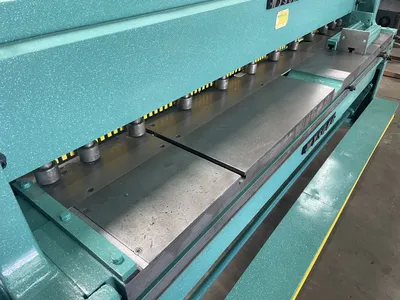

NUMBER OF HOLD DOWNS: 12
STROKES PER MINUTE: 60 SPM
RAKE: 3/8"

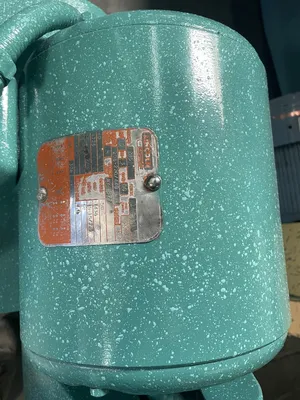

MOTOR: 5 HP 230/460/60/3
APPROXIMATE DIMENSIONS: 112" LR x 84" FB x 55" TALL
APPROXIMATE WEIGHT: 11,200 LBS.
EQUIPPED WITH:
REAR OPERATED BACK GAUGE
(2) SUPPORT ARM
