Explore precision with the Okamoto 618 Linear Surface Grinder, featuring a 6" x 18" grinding capacity. Equipped with a Walker fine-division electro-magnetic chuck and a powerful 2 HP motor, it's ideal for demanding surface grinding tasks.
| Table-W | 6" | 152.4 mm |
| Table-L | 18" | 457.2 mm |
| Horz/Vert | Vert | Vert |
| Grinding Wheel Width | 1" | 25.4 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |

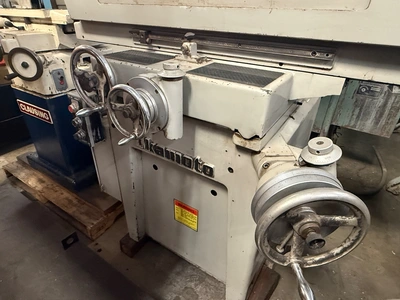

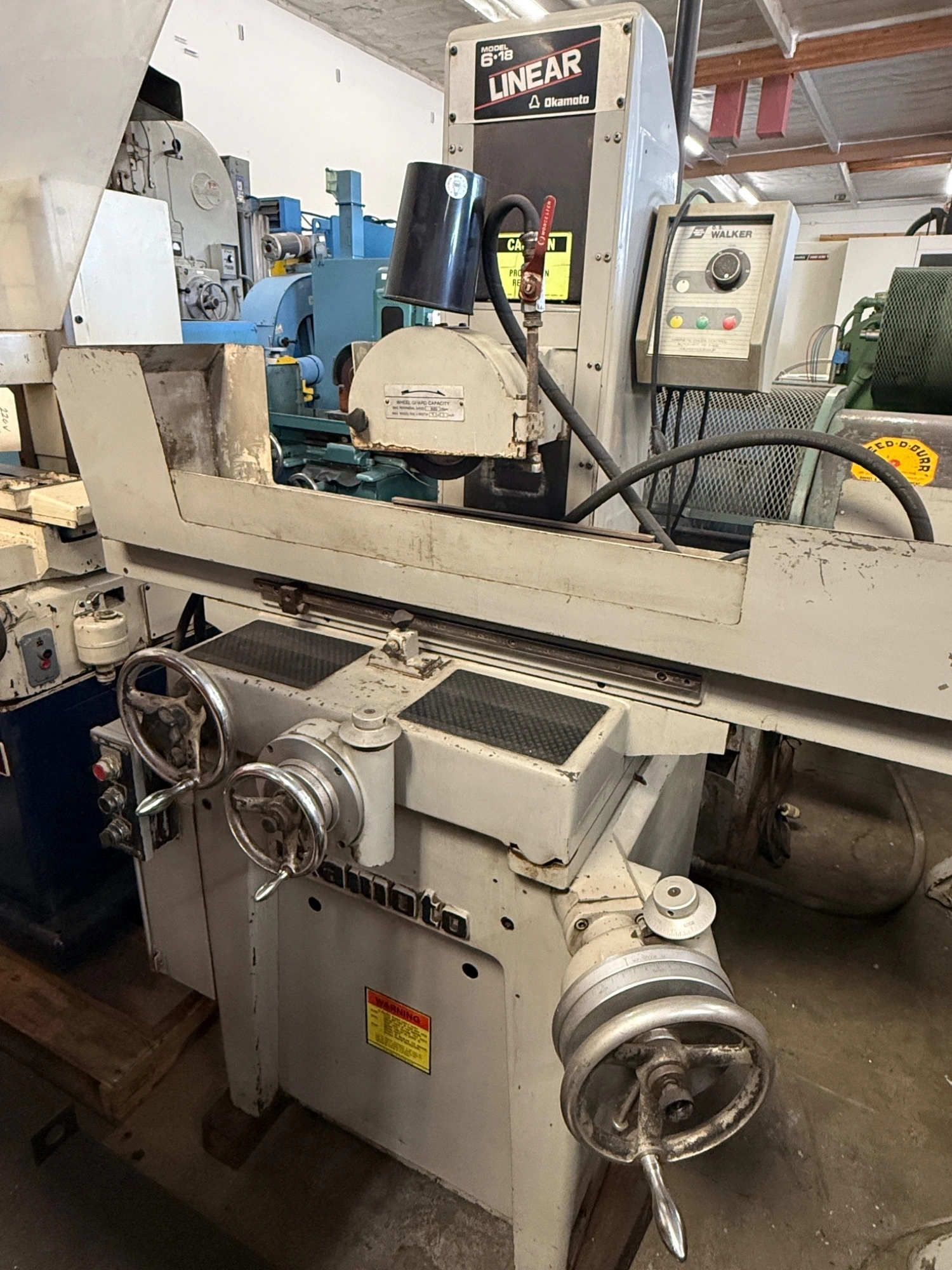

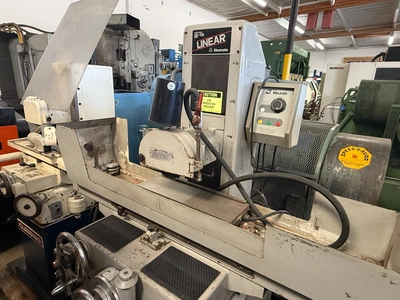

Okamoto 618 Linear (PFG-618) Surface Grinder #7518 #2
SPECIFICATIONS:
NOMINAL GRINDING CAPACITY: 6" x 18"
TABLE TO UNDERSIDE OF 8" GRINDING WHEEL: 14.27"
MAX. LONGITUNAL TABLE TRAVEL: 20.87"
MAX. CROSS TRAVEL: 8.27"
MOVEMENT PER HANDWHEEL REVOLUTION:
-TABLE: 5.12"
-SADDLE: 0.1""
SADDLE: 0.05"
HANDWHEEL GRADUATION: 0.0001"
SPINDLE MOTOR: 2 H.P.
GRINDING WHEEL SPEED: 3,450 RPM
WHEEL SIZE: 8" x 1/2" x 1- 1/4"
APPROX. DIMS. FOR OPERATION: 76.5" x 55.3"D x 68"H
APPROX. MACHINE WEIGHT: 2,070 LBS.
SHIPPING DIMENSIONS: 58" x 41" x 76" H
EQUIPPED WITH:

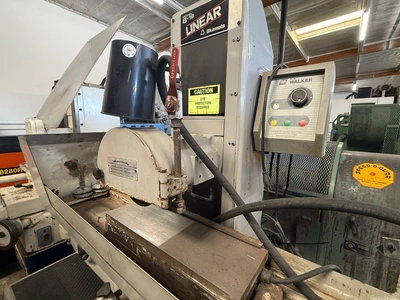

6" X 18" WALKER "LBP" FINE-DIVISION ELECTRO-MAGNETIC CHUCK
NEUTROFIER CHUCK CONTROL
2 H.P. DIRECT DRIVE SPINDLE, 3/60/230-460 VOLTS
