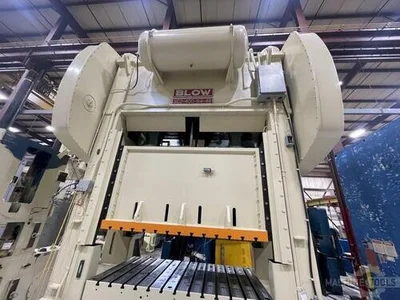

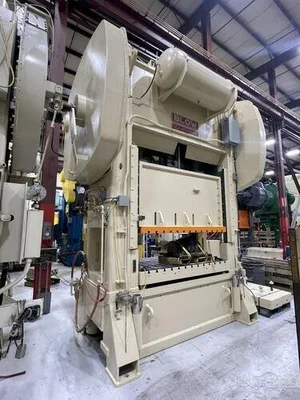

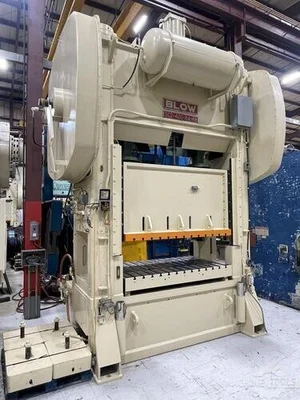

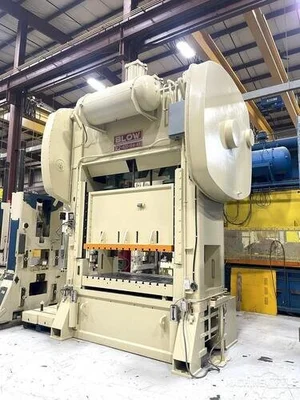

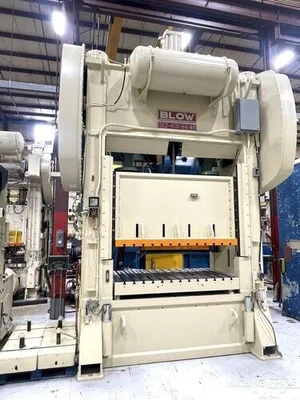

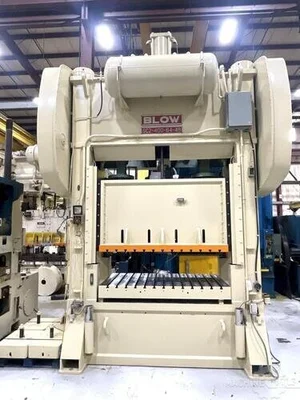

400 ton Blow SC2-400-84-48 Used Straight Side Mechanical Metal Stamping Press For Sale, Year 1989, RECONDITIONED!
| Tonnage | 400 T | 362.874 t |
| Stroke | 6" | 152.4 mm |
| Shut Height | 36" | 914.4 mm |
| SPM | 80 strokes/min. | 80 strokes/min. |
| Bed W | 48" | 1,219.2 mm |
| Bed L | 84" | 2,133.6 mm |
Tonnage: 400
Stroke: 10 inches
Shut Height: 34 inches
Adjustment: 10 inches
Bed Size: 84" LR x 48" FB

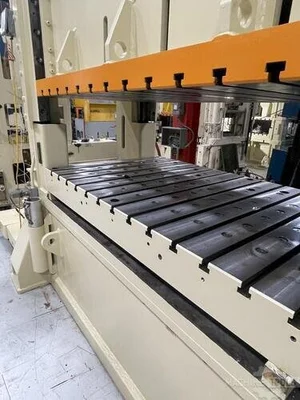

Ram Area: 84" LR x 48" FB
SPM: 25-50 VSPM
Standard SpecificationsBlow Press Model SC2-400-84-48Reconditioned Straight Side Mechanical Press400-ton Capacity Press10" Stroke34" Shut Height On Bed28" Shut Height On Bolster10" Motorized Adjustment84" LR x 48" FB Bed Area84" LR x 48" FB Slide Area25-50 VSPMEquipment and FeaturesAir Clutch and Brake Air CounterbalancesRecirculating Lube SystemT-Slotted Ram and Bolster Upgrade PLC Controls -- Wintriss Die Protection- 0-20 Programmable Cams-Torspec Variable Speed Drive 5001TCPSafety Light CurtainsIncludes Vibro Dynamic Floor Pads30" Wide WindowsFloor StandingOverall Height 228" Tall (Without Floor Pads)Footprint: 124" Wide x 84" DepthThis Reconditioned 400 ton Blow Straight Side Mechanical Metal Stamping Press an be seen under power in the S&G Press Livonia MI Warehouse Upon Request!S&G Press Inventory of Straight Side Mechanical PressLink to More 400-ton Mechanical Stamping Presses
Used Straight Side Double Crank 400 ton Blow Mechanical Press For Progressive Die Stamping
