USED 2006 HORN CNC50TBRE

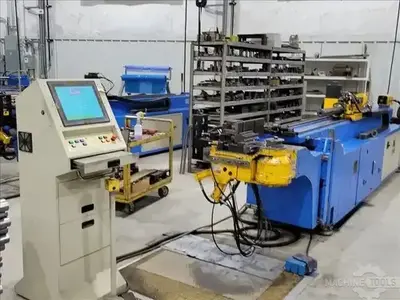

Horn CNC50TBRE CNC Tube Bender

Bending Capacities
Round Tube, Mild Steel: 2.00" x0.08"
Round Tube, Non-Ferrous 2.00" x0.14"
Round Tube, Stainless: 2.00" x0.05"
Square Tube, Mild Steel: 1.57" x0.08"
Solid Bar, Mild Steel: 0.98"
Max. Bending Radius: 1.18" -8.66"
Max. Bending Angle: 190°
Rolling Capacities
Round Tube, Mild Steel: 2.00" x0.08"
Round Tube, Non-Ferrous: 2.00" x0.14"
Round Tube, Stainless Steel: 2.00" x0.05"
Square Tube, Mild Steel: 1.57" x0.08"
Solid Bar, Mild Steel: 0.98"
Min. Rolling Radius: 7D
Max. Difference Between Two Radii: 2.56"
Max. Length over Mandrel: 125.98"
Max. Pipe O.D./ For Repeat Feeding: 2.00"
Working Height: 43.31"
Tooling Center Line Height: 1.57"
DOB (Bending) Speed: 105° / sec
Accuracy of DOB (Bending): +/-0.01°
DBB (Feeding) Speed: 1724 IPM
Accuracy of DBB (Feeding): +/-0.00"
POB (Rotation) Speed: 270° / mm
Accuracy of POB (Rotation): +/- 0.1°
Motor for Hydraulic: 5.1HP
Total Power: 24.1HP
Max. Pressure: 308.00 lbsf / c

M3 CNC Control
Double Stack Tooling
Right Hand Bending
Facility for Draw Bending and Push Bending
Y, B, C, X Axes Servo Motor Drive
Y-Axis Alternative Repeat Feeding or Grip End Feeding Function
C-Axis Electric Drive
Z-Axis Hydraulic Cam Lift Device
Metric and Inch Setting
4-Program Auto Mode
Automatic Positioning of Y-Axis
Pressure Die Assist
Air Cooling
Foot Pedal Cycle
Wiper Die Bracket
