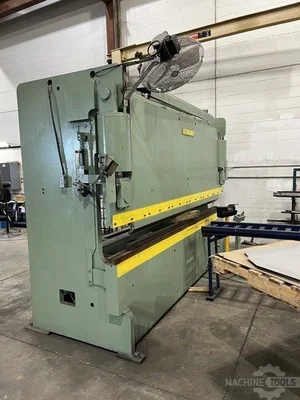

190 Tons X 12’ Hydraulic Press Brake with Power Backgauge and Palm Control
| Tonnage | 190 T | 172.365 t |
| Overall Length | 12' | 3.7 m |
| Between Housings | 10.5' | 3.2 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 1 | 1 |
190 Tons X 12’ Hydraulic Press Brake with Power Backgauge and Palm ControlGENERAL SPECIFICATIONS Capacity: 190 TonsBending Length: 144”Open Height: 14”Stroke of Ram: 8” Rapid Approach Speed: 68 IPMPressing Speed: 31 IPMReturn Speed: 86 IPMBed Height: 37”Motor: 20HPApprox. Weight: 28,000 LbsDimensions: 160” X 56” X 103”INCLUDES: Power Backgauge and Palm Control
