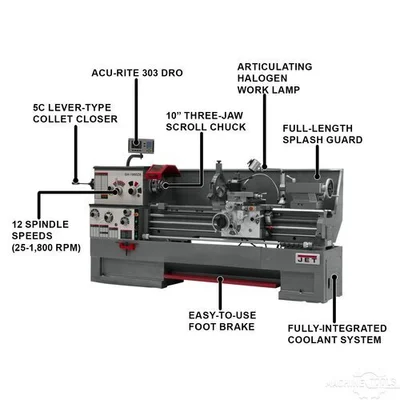

18” X 60” Engine Lathe with Articulating LED Work Lamp, Centrally Located Controls with Jog Button, Electronic Chuck Key Holder, Five Position Automatic Carriage Stop, Full Length Splash Guard and Coolant Return, Large Capacity Steady Rest with Ball Bearing Tips, Large Foot Brake, Mounting Pads & Levelers, Removable Gap for Large Diameter Work, Tool Box and Adjusting Tools.
| Swing | 18" | 457.2 mm |
| Centers | 60" | 1,524 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 11" | 279.4 mm |
18” X 60” Engine Lathe with Articulating LED Work Lamp, Centrally Located Controls with Jog Button, Electronic Chuck Key Holder, Five Position Automatic Carriage Stop, Full Length Splash Guard and Coolant Return, Large Capacity Steady Rest with Ball Bearing Tips, Large Foot Brake, Mounting Pads & Levelers, Removable Gap for Large Diameter Work, Tool Box and Adjusting Tools.GENERAL SPECIFICATIONS Carriage Travel: 55-9/16”Compound Slide Travel: 5-⅛”Cross Slide Travel: 9”Length of Gap: 12”Max. Tool Size: 1” X 1”Motor: 7-½” HP, 230/460V, 3 PhNumber of Longitudinal & Cross Feed Rates: 46/31Number of Spindle Speeds: 12Overall Dimensions: 115” X 44” X 66”Range of Cross Feeds: .0006 - .0360 IPRRange of Longitudinal Feeds: .0015 .0900 IPRRange of Spindle Speeds: 25 - 1,800Spindle Bore: 3-⅛”Spindle Mount: D1-8Steady Rest Capacity: ⅜” - 7-¾”Swing Over Bed: 18”Swing Over Cross Slide: 11”Swing Through Gap: 27-½”Tailstock Spindle Travel: 5”Taper in Tailstock Spindle: MT-5Gross Weight: 6,450 LbsINCLUDES: Articulating LED Work Lamp, Centrally Located Controls with Jog Button, Electronic Chuck Key Holder, Five Position Automatic Carriage Stop, Full Length Splash Guard and Coolant Return, Large Capacity Steady Rest with Ball Bearing Tips, Large Foot Brake, Mounting Pads & Levelers, Removable Gap for Large Diameter Work, Tool Box and Adjusting Tools.
