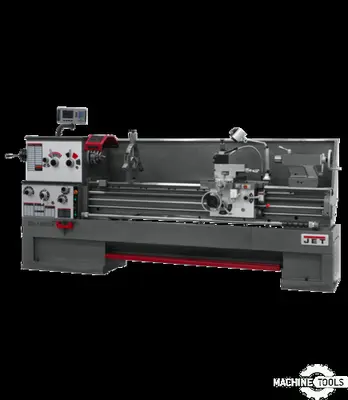

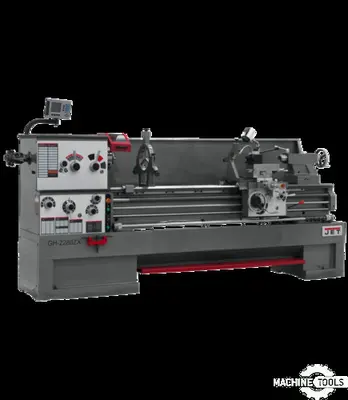

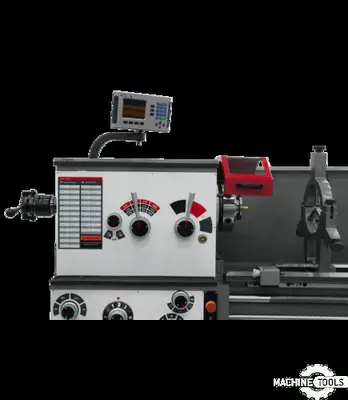

18” X 80” Engine Lathe with Articulating Work Lamp, Centrally Located Controls with Jog Button, Electronic Chuck Key Holder, Five Position Automatic Carriage Stop, Full Length Splash Guard and Coolant Return, Large Capacity Steady Rest with Ball Bearing Tips, Large Foot Brake, Mounting Pads & Levelers, Removable Gap that Allows Large Diameter Work, Tool Box and Adjusting Tools.
| Swing | 18" | 457.2 mm |
| Centers | 80" | 2,032 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 11" | 279.4 mm |
18” X 80” Engine Lathe with Articulating Work Lamp, Centrally Located Controls with Jog Button, Electronic Chuck Key Holder, Five Position Automatic Carriage Stop, Full Length Splash Guard and Coolant Return, Large Capacity Steady Rest with Ball Bearing Tips, Large Foot Brake, Mounting Pads & Levelers, Removable Gap that Allows Large Diameter Work, Tool Box and Adjusting Tools.GENERAL SPECIFICATIONS Carriage Travel: 74-5/16”Compound Slide Travel: 5-⅛”Cross Slide Travel: 9”Length of Gap: 12”Max. Tool Size: 1” X 1”Motor: 7-½ HP, 230/460V, 3 PhNumber of Longitudinal & Crossfeed Rates: 46/31Number of Spindle Speeds: 12Overall Dimensions: 136” X 44” X 66”Range of Spindle Speeds: 25 - 1,800 RPMSpindle Bore: 3-⅛”Spindle Mount: D1-8Swing Over Bed: 18”Swing Over Cross Slide: 11”Swing Through Gap: 27-½”Tailstock Spindle Travel: 5”Taper in Tailstock Spindle: MT-5Gross Weight: 6,700 LbsINCLUDES: Articulating Work Lamp, Centrally Located Controls with Jog Button, Electronic Chuck Key Holder, Five Position Automatic Carriage Stop, Full Length Splash Guard and Coolant Return, Large Capacity Steady Rest with Ball Bearing Tips, Large Foot Brake, Mounting Pads & Levelers, Removable Gap that Allows Large Diameter Work, Tool Box and Adjusting Tools.
