Siemens Sinumerik 840D CNC Control System
For Internal Grinding
Coolant Devise
Profile Grinding Wheel Max. Dia. 400 mm
Dressing Wheel 200 mm

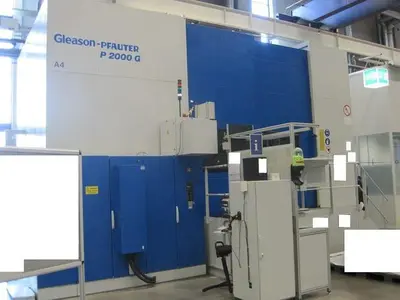

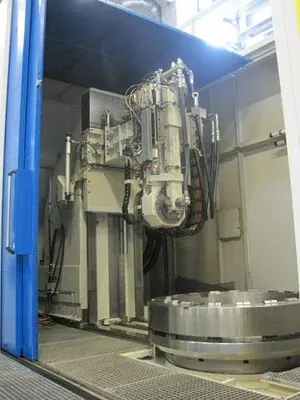

Manufacturer: Gleason Pfauter
Model: P2000 G
Year: 2008
Condition: Used
Stock Number: 10508
Max wheel diameter: 2,600 mm
Gear width: 600 mm
Minimum workpiece inner diameter: 2,000 mm
Profile depth to grind - max: 1,100 mm
Grinding head - swivable: 65 Degree
Speeds: 1,180 rpm
Spindle speeds: 300 - 3,000 rpm
C feeds: 0 - 5 mm/min
X feeds: 3,000 mm/min
Table load: 1,460 kg
Weight of the machine: 80 ton
Machine diimensions: 8.34 x 8.11 x 5.48 m
