| Swing | 22.83" | 579.88 mm |
| Machining Length | 23.6" | 599.44 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,800 RPM | 4,800 RPM |
| Turning Dia | 13.78" | 350.01 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc Oi-T) | CNC (Fanuc Oi-T) |
| Dimensions | 133″ x 64″ x 74″ High Approx. | 133″ x 64″ x 74″ High Approx. |
| Weight | 7,716 lbs | 7,716 lbs |

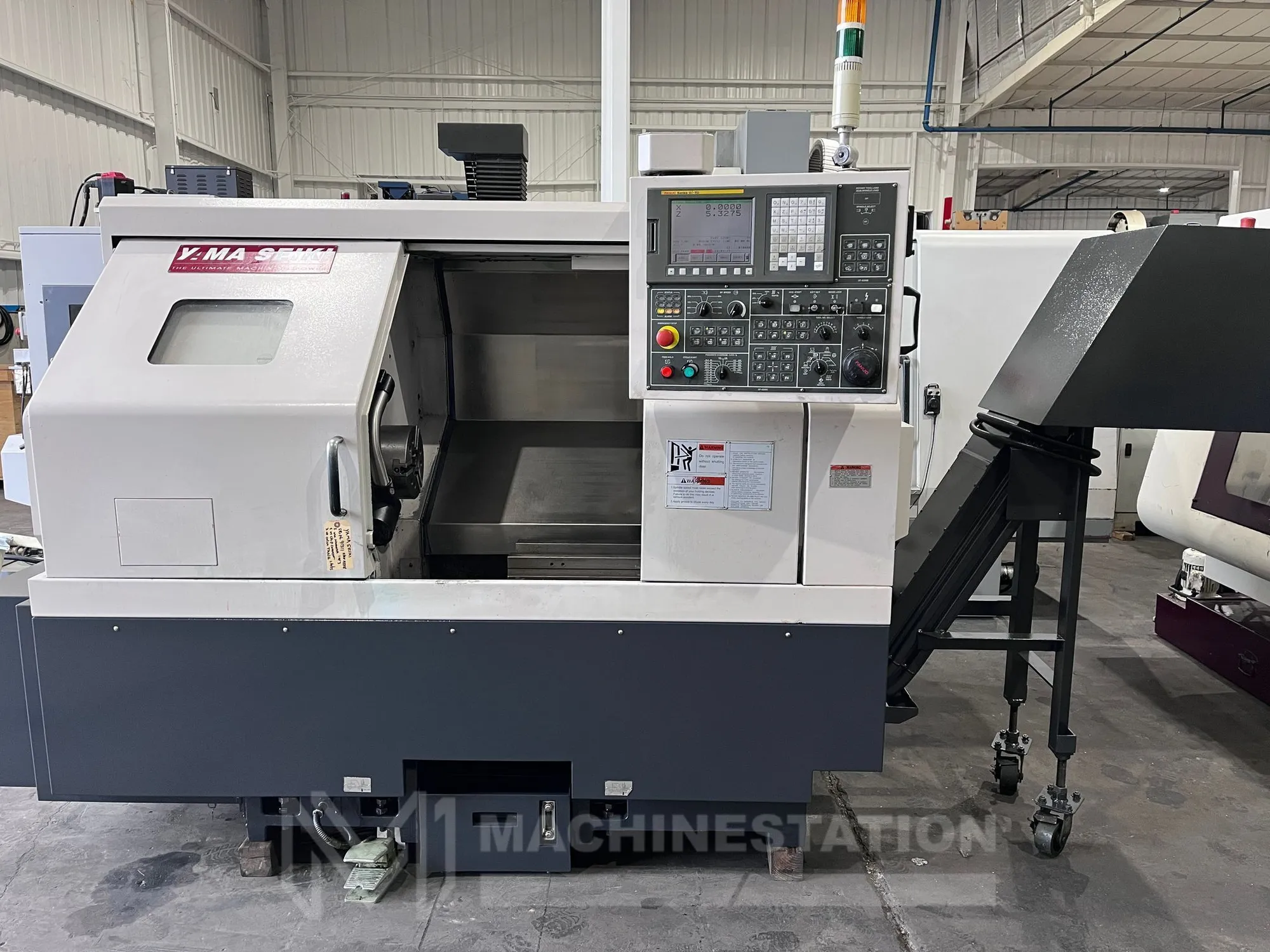

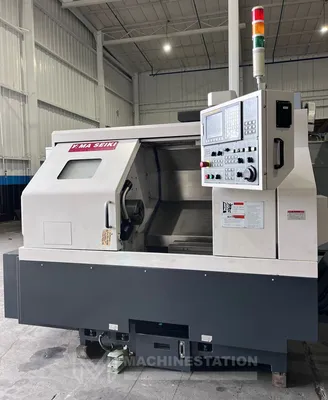

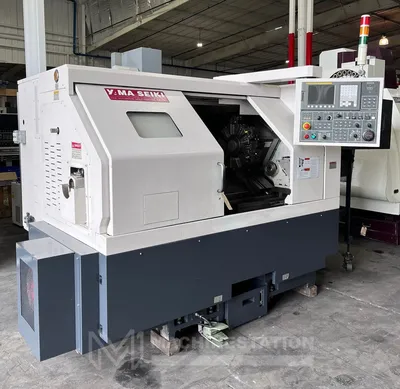

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:

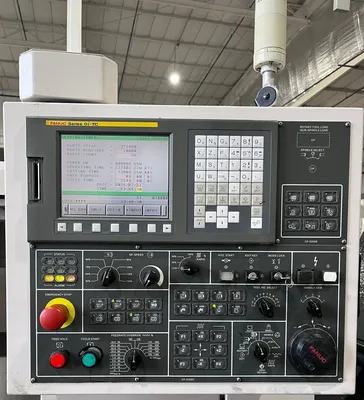

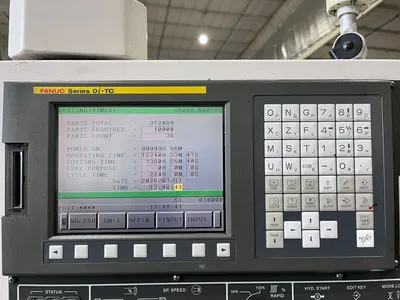

Fanuc Oi-TC CNC Control
7,380 Hours Cutting Time

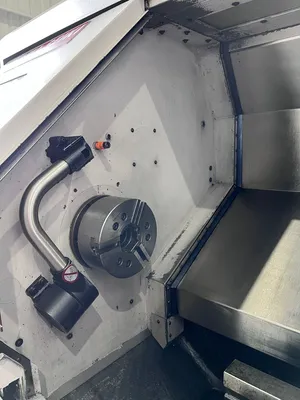

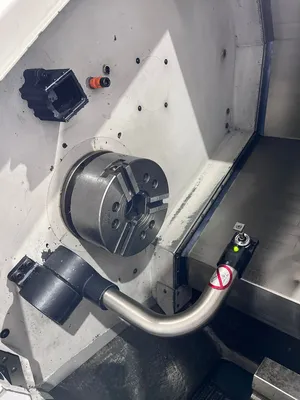

8″ 3- Jaw Kitagawa Chuck
A2-6, 4800 RPM Spindle

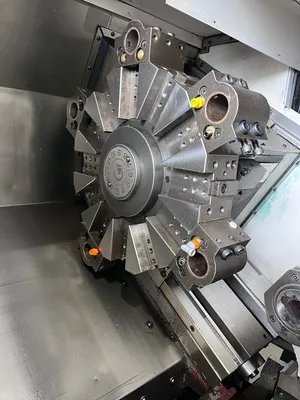

12 Station Automatic Turret
Rigid Tapping
PCMCIA Card Interface

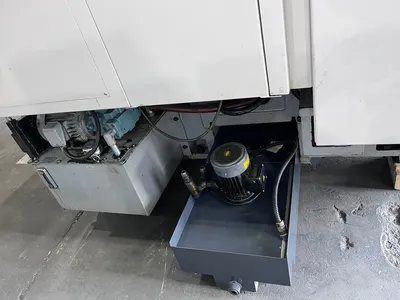

Coolant System
Capacity:
Max Turning Diameter: 13.78″
Max Turning Length: 23.60″
Max Swing Over Bed: 22.83″
Max Swing Over Saddle: 15.75″
Max Bar Capacity: 2.0″
Travels:
X Axis Travel: 8.07″
Z Axis Travel: 24.40″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.4″
Spindle Speed: 4800 RPM
Spindle Motor: 20 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tool Size: 1″
Tool Holders Type: BMT
Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Diameter: 2.76″
Tailstock Quill Stroke: 5.91″
General:
Power: 50/60 HZ / 220v / 3-Phase
Overall Dimensions: 133″ x 64″ x 74″ High Approx.
Weight: 7,716 lbs
Tool Presetter
Tailstock
Foot Switch
Chip conveyor
(5) Boring Tool Holders (Equipped on Turret as shown in the images)
