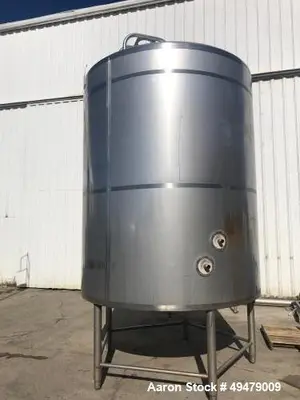

Used DCI 2,500 Pressure Wall Processor, Gallon Dome Top, Cone Bottom, 316l Interior. Offset Vertical Agitator. Double Sprayball. 2" Outlet. 23 Sq. Ft. Jacketed On Lower Sidewall Only. Approximately 88" Diameter X 183" High. Top Manway. Stainless Steel Legs with Adjustable Feet.
Used Equipment Facts About This Machine
Description
This used DCI 2,500 Pressure Wall Processor is engineered with a durable 316L stainless steel interior, featuring a dome top and cone bottom design that promotes efficient drainage and processing. An offset vertical agitator ensures thorough mixing, while a double sprayball system facilitates effective cleaning. The tank includes a 2" outlet and a 23 sq. ft. jacketed area on the lower sidewall only, enhancing thermal control for temperature-sensitive processes. With an overall size of approximately 88" in diameter by 183" in height, the unit is equipped with a top manway for easy access and is mounted on stainless steel legs with adjustable feet for stable installation.
Specifications
Capacity: 2,500 Gallon Pressure Wall Processor

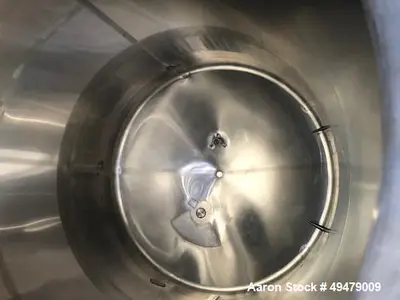

Interior Material: 316L Stainless Steel
Design:
Dome top

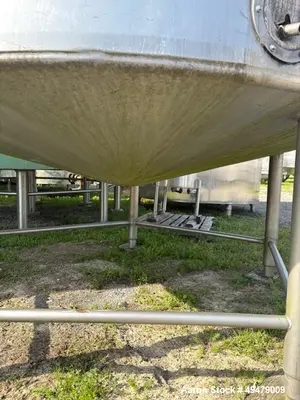

Cone bottom
Agitator: Offset vertical agitator
Cleaning: Double sprayball system

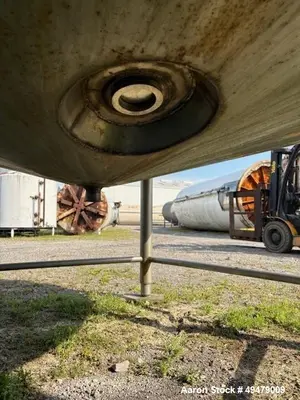

Outlet: 2" outlet
Jacket: 23 sq. ft. jacketed on lower sidewall only
Dimensions: Approximately 88" Diameter x 183" High

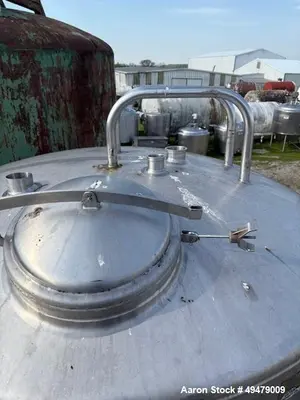

Access: Top manway
Mounting: Stainless steel legs with adjustable feet
Applications
Ideal for a wide range of industrial mixing and processing operations, this tank is suited for:
Chemical blending and formulation
Food and beverage processing
Pharmaceutical manufacturing
Dairy and specialty product processing
Other industries requiring precise mixing and temperature control
What Products Would This Be Used For
Industrial chemicals and solvents
Food ingredients and sauces
Pharmaceutical emulsions and suspensions
Dairy products and beverages
Specialty chemical formulations
PRODUCT DETAILS
Used pressure wall processor
DCI mix tank
2,500 gallon processing tank
316L stainless steel mix tank
Industrial mix tank
Used DCI 2,500 Gallon Pressure Wall Processor
316L stainless steel pressure wall processing tank
Industrial mix tank with offset vertical agitator
2,500 gallon tank with double sprayball cleaning
Used DCI 2,500 Gallon Pressure Wall Processor with dome top, cone bottom, and 316L stainless steel interior
Industrial mix tank with offset vertical agitator and double sprayball system
2,500 gallon pressure wall processing tank with 23 sq. ft. jacket on lower sidewall
DCI pressure wall processor with top manway and stainless steel legs with adjustable feet
