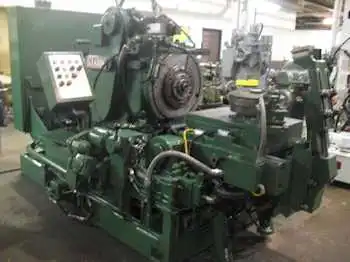

MODEL 609 GLEASON GEAR FINISHER
| Maximum Diameter Gear | 20" | 508 mm |
| Maximum Face Width | 3" | 76.2 mm |
| Maximum Cone Distance | 10" | 254 mm |
| Extreme Ratio | 10:1 | 10:1 |
| Control Manufacturer | Conventional | Conventional |
| Dimensions | 118" x 86.5" x 70" | 118" x 86.5" x 70" |
| Weight | 16,000 | 16,000 |
Specifications:
Min. Outside Cone Distance: 2.75"
Max. Cone Distance: 10"
Max. Gear Pitch Dia.: 20"
Cutter Diameters Utilized: 9 - 18"
Root Angle: 55 - 80 deg.
Face Width: 3"
Number of Teeth: 20 -75
Diameter of Taper Hole at Large End: 3-27/64"
Taper Per Foot: .50"
Depth of Taper: .625"
Cutter Speeds: 6.8 to 16.5 RPM
Feeds (seconds/tooth): 3 to 9
Main Motor: 5hp, 900 rpm
Hydraulic Motor: 7.5hp, 1800 rpm
Approx. Floor Space: 118" x 86.5" Needed
Overall Height: 70"
Approx. Net Weight: 16,000 lbs
Shipping Weight Boxed for Export: 17,000 lbs
F.O.B. TRUCK, LOCATION
Stock Divider
Hydraulic Work Clamping
Chip Conveyor
Index Plate
Change Gears
Hydraulic System
Coolant System
Work Light
