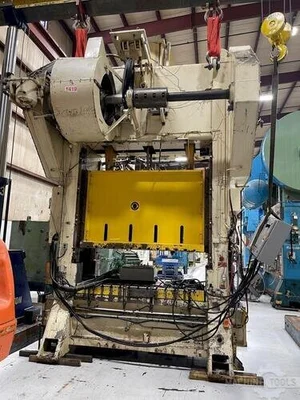

400 ton Bliss SC2-400-84-48 Used Straight Side Mechanical Metal Stamping Press For Sale, Year 1980, Good Running Press!
| Tonnage | 400 T | 362.874 t |
| Stroke | 12" | 304.8 mm |
| Shut Height | 27" | 685.8 mm |
| SPM | 30 strokes/min. | 30 strokes/min. |
| Vari Speed (Yes/No) | No | No |
| Bed W | 48" | 1,219.2 mm |
| Bed L | 84" | 2,133.6 mm |
| Crank (Single/Double) | Double | Double |
| Air Clutch (Yes/No) | Yes | Yes |
Tonnage: 400
Stroke: 12 inches
Shut Height: 30.5 inches
Adjustment: 10 inches
Bed Size: 84" LR x 48" FB
Ram Area: 84" LR x 48" FB
SPM: 30 SPM
Standard SpecificationsUsed Bliss Press Model# SC2-400-84-48Straight Side Mechanical Metal Stamping Press400 ton Capacity12" Stroke30.5" Shut Height84" LR x 48" FB Bed Area84" LR x 48" FB Slide Area30 SPMEquipment and FeaturesAir Clutch and BrakeAir CounterbalancesRecirculating Lube SystemT-Slotted Ram and Bolster 6.5" Bolster Plate Thickness40 HP, 1125 RPM Main Drive MotorAir Cushions in BedMotors and ControlsImco Tonnage Monitor25" Wide WindowsVibro Dynamic Floor PadsLight CurtainsFloor Standing Overall Weight 118,000 lbs.230" Overall Height116.75" Wide x 80" Depth Footprint42.5" Floor to Top of BolsterThis Used 400-ton Bliss Press can be seen under power in the S&G Press Livonia Michigan Warehouse! Click for More Used 400-ton Mechanical Metal Stamping Straight Side Press For SaleBliss Mechanical Metal Stamping Press For Sale, Used Presses For Sale, Straight Side Mechanical Presses, Rebuilt and Remanufactured Presses
